Product detailed description

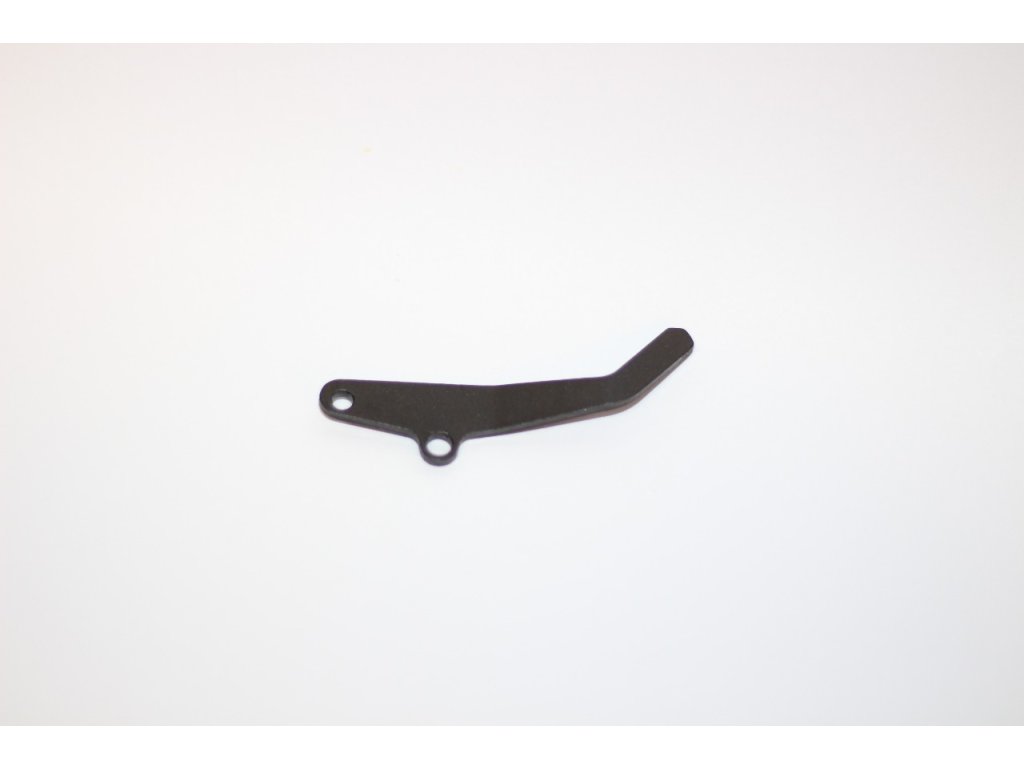

Original VZ 58 release lever.
The release lever lowers the right firing pin catch when the slide is in the forward position.
In a third of its length, it has a hole through which it is rotatably mounted on the pin.
The shorter arm of the release lever is pivotally connected to the right catch of the firing pin by a pin.
The longer, curved arm of the release lever engages a recess in the right part of the bolt carrier bridge and is operated by the right side of the bolt carrier bridge.
The release lever together with the left and right catch of the striker form a single unit.
The release lever is a spare part that is only found on the original SA vz.58 allowing burst firing.
This part is not found in the CZ858, nor in CSA weapons.
Additional parameters
| Category: | Vz 58 Original parts |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.01 kg |
